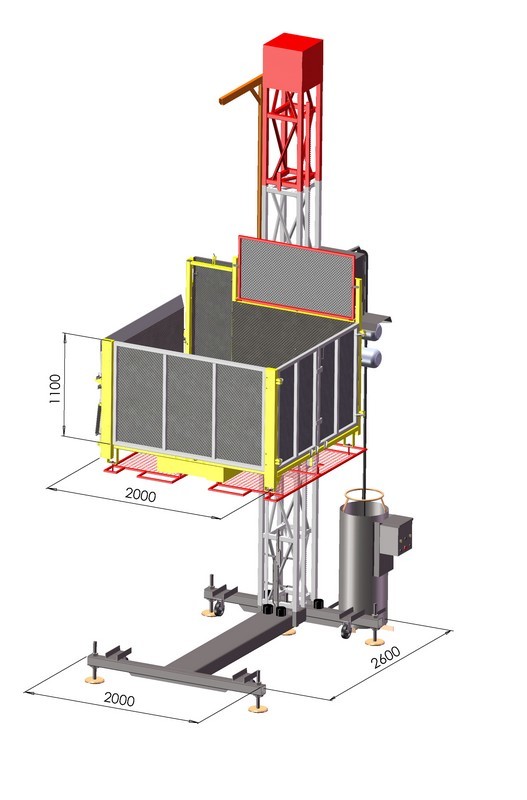

MAX1700

RACK AND PINION HOIST FOR MATERIALS AND PERSONS

Basic Equipment Rack and Pinion Hoist for persons and materials three-phase
1 Transport Platform
1 Standard Tilting Anchorage
1 Anchorage Support
1 Cabel Guide
1 Floor Stop
1 Plug
1 Levelling tool
35 meters of electric cable

Model	MAX1700
Type of Load	Materials and Persons
Maximum Load	1700 Kg
Platform Length	2.15 M
Platform Width	2.80 M
Platform Height	2.15 M
Lifting Speed with Materials	24 M/min
Maximum Height	150 M
Anchorage tie	6 M
Motor Power	2 x 6 Kw
Power Supply	Three-phase
Weight of the Machine	1475 Kg
Model of Mast
